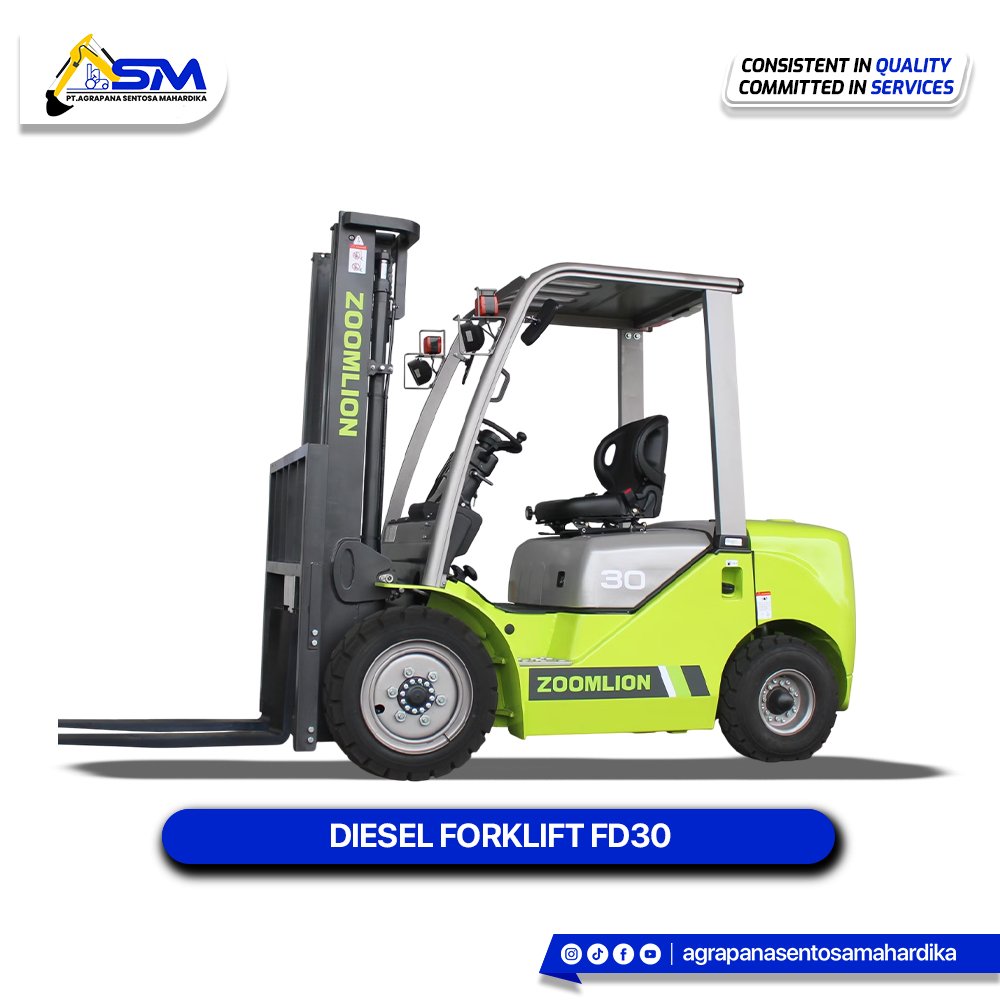

The Zoomlion FD30 is a diesel forklift equipped with a 4-cylinder XINCHAIG495BPG engine that produces 34.5 kW of power. The unit has a rated load capacity of 3500 kg and a standard lifting height of 3000 mm. Key specifications include a 70 L fuel tank, a curb weight of 4350 kg, and transmission options of either 2/2 Manual shift or 1/1 Power shift.
70 L
DIESEL
3500 kg
34.5/2500 kw/r.p.m
The FD30 is powered by a XINCHAIG495BPG diesel engine. It delivers a rated power of 34.5 kW at 2500 r.p.m. and a rated torque of 139 Nm at 1800 r.p.m..
While the cover mentions an operating weight of 3000 kg, the specification table lists a Rated Load of 3500 kg with a 500 mm load center. It features a standard lifting height of 3000 mm and a free lifting height of 145 mm.
The forklift achieves a maximum traveling speed of 20 km/h and a maximum lifting speed of 470 mm/s when fully loaded. It has a minimum turning radius of 2400 mm and a max climbing ability of 20%.
