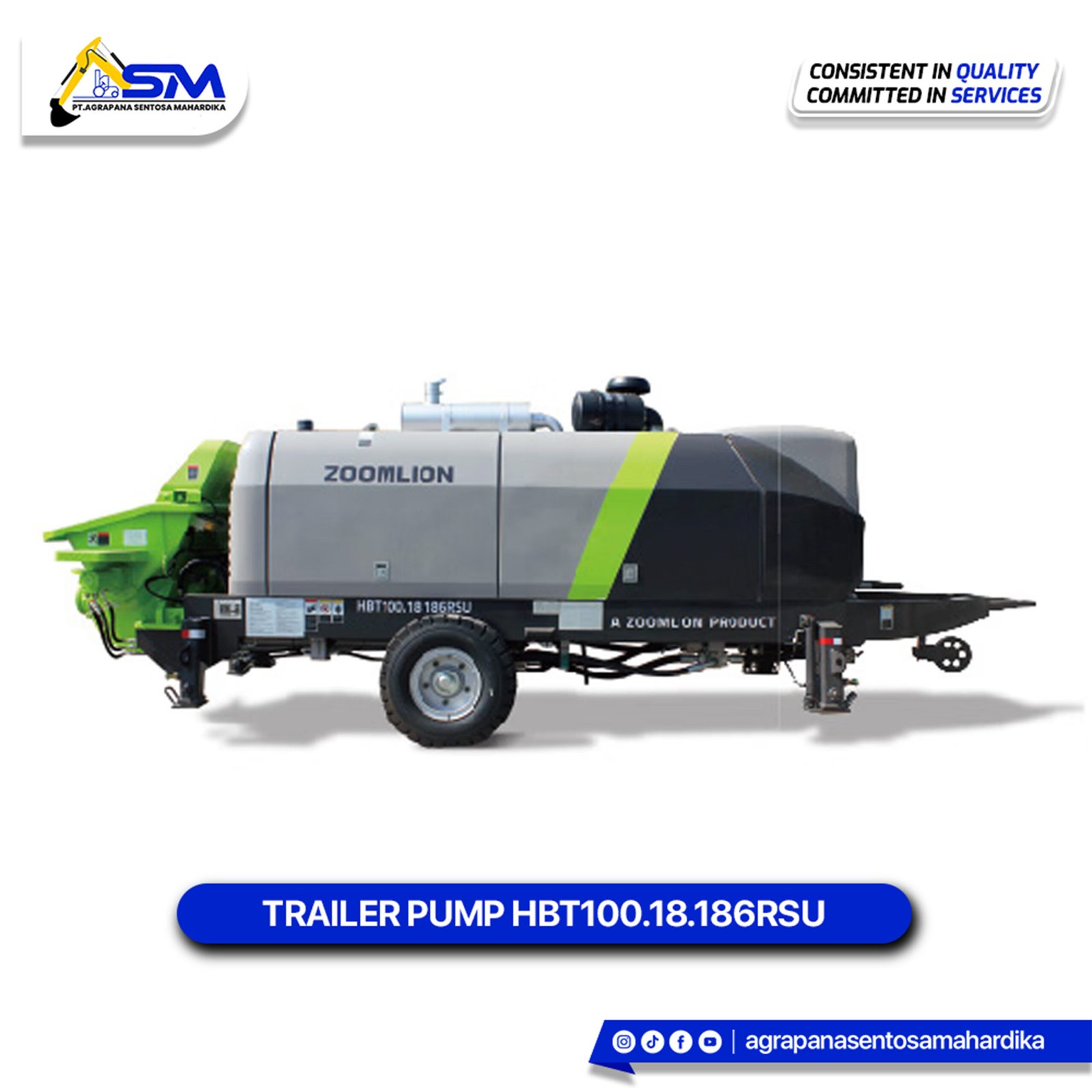

The ZOOMLION HBT100.18.186RSU is a high-performance concrete pump. This machine is designed for efficient and powerful pumping operations, capable of a maximum theoretical output. It utilizes an S valve distribution system and is powered by a DEUTZ BF6M1013-25T3R/1 diesel engine with a rated power of 186 kW.
186 kW
180/100bar
7390 kg
6860 x 2175 x 2700mm
The ZOOMLION HBT100.18.186RSU offers a powerful pumping system with a delivery cylinder size of φ200x1800 mm and uses an S valve distribution type. It is capable of handling a maximum aggregate size/delivery pipe diameter of 50/φ150 mm or 40/φ125 mm, making it suitable for various concrete mix designs.
The machine is equipped with a DEUTZ BF6M1013-25T3R/1 diesel engine, providing a rated power of 186 kW and operating at a rated speed of 2100 rpm. This power system meets the China III emission standard and employs an open hydraulic circuit type, ensuring reliable power and operation.
The hydraulic system features a high-rated working pressure of 320 bar for the pumping system, while the distribution and mixing systems operate at 190 bar and 140 bar, respectively. It has a large oil tank capacity of 320 L and utilizes air cooling for the hydraulic oil, supporting continuous and stable performance on site.
