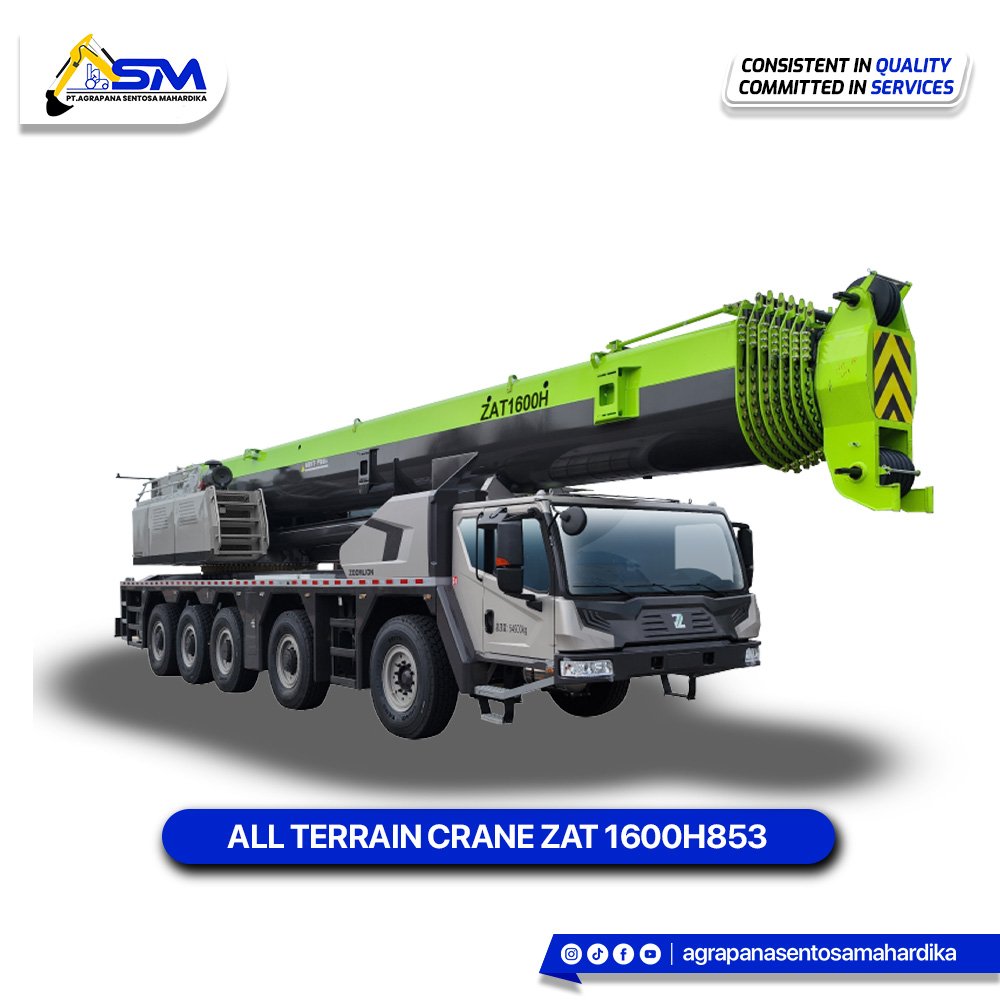

ZAT1600H All Terrain Crane is a high-capacity crane with a maximum rated lifting capacity of 160 tons. It features an impressive 88.0m main boom and an optional jib up to 33.5m, achieving a maximum lifting height of 116.5m. Key operational metrics include a maximum hoist rope speed of 135 m/min and a minimum turning diameter of only 18.5 m. The crane is highly mobile (Max. driving speed 80 km/h) and powerful, utilizing a WP12.460E50 engine (338 kW) for the carrier and an H-type outrigger spread of 8.3m x 9.23m for stability. The overall dimensions in driving condition are 17015×3000×4000 mm with a deadweight of 61,800 kg.
160 ton
88.0 m (5 sections)
116.5m
17015mm × 3000mm x 4000mm
The ZAT1600H delivers an outstanding maximum rated lifting capacity of 160 tons and features a powerful 5-section main boom that reaches an extended length of 88.0m. With the optional jib (up to 33.5m), the crane achieves a massive maximum lifting height of 116.5m, making it highly capable for high-rise and deep-reach operations. Its lifting moment of the basic boom reaches 525 t.m.
The crane is built on a ZOOMLION-made chassis and is highly maneuverable for its size, boasting a low minimum turning diameter of only 18.5 m and a maximum driving speed of 80 km/h. Stability during lifting operations is secured by large H-type outriggers with a wide spread (8.3m x 9.23m completely extended). Its hydro-pneumatic suspension and all-axle steering system ensure adaptability and control across varied terrains.
The ZAT1600H ensures efficient workflow with a fast maximum hoist rope speed of 135 m/min. Furthermore, it utilizes an advanced electro-hydraulic proportional control system for steering axles 3, 4, and 5, providing precise movement. The crane's working speeds are optimized, with the boom derricking up in 70 seconds and the boom extending in 880 seconds (full extension).
