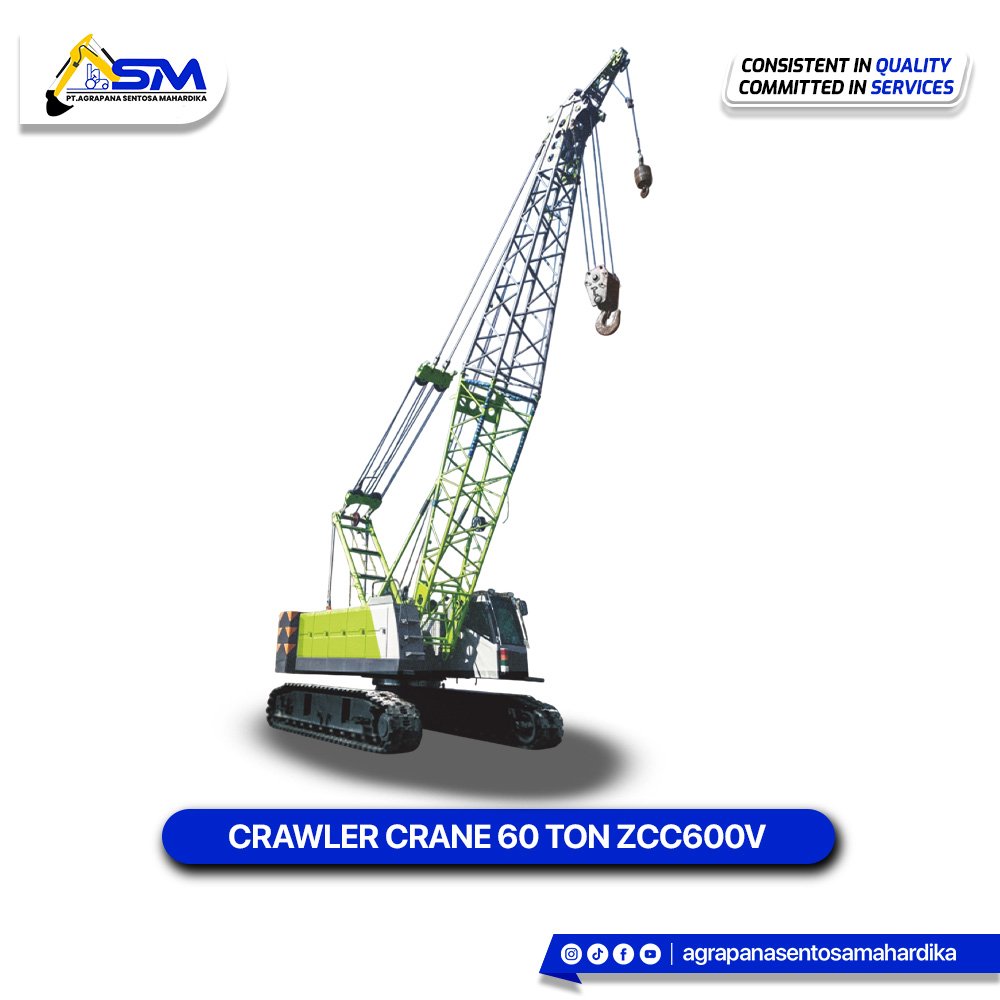

ZCC600V Crawler Crane is a 60-ton capacity crawler crane with an operating weight of approximately 49.5t. It features a 52m max main boom and a 15m max fixed jib, allowing for a max combination of 43m main boom + 15m jib. The crane is highly efficient with a max single rope speed of 145 m/min and uses a pilot proportional control hydraulic system. Its design prioritizes easy transport, with a max width of 3m when tracks are retracted.
60 ton
49.5 ton
58m
12100mm x 4530(2990)mm x 3300mm
The ZCC600V is designed for maximum efficiency, featuring high single rope speeds reaching 145 m/min (at the 3rd layer) for both the main and auxiliary winches. This high speed significantly reduces lifting cycle times. Additionally, the crane offers an optional free-fall function for the hoisting winches, further enhancing the efficiency and speed of material handling and hoisting operations on the job site.
Despite being a 60-ton crane, the ZCC600V is optimized for transport and dismantling. The tracks are extendible, reducing the maximum width of the entire machine during transportation to only 3m, simplifying logistics and permitting road travel in many regions. Furthermore, assembly is made easier as the weight of any single counterweight plate does not exceed 5.1t, meaning a small auxiliary crane can be utilized to finish the assembly process quickly and safely.
The crane features a new cabin design that prioritizes ergonomics and safety. The operator benefits from an adjustable seat and a state-of-the-art control environment, which includes a 10.4-inch touch screen and a camera monitor. This setup provides excellent visibility and a perfect all-round vision, enhancing both safety and operational precision during long working hours.
